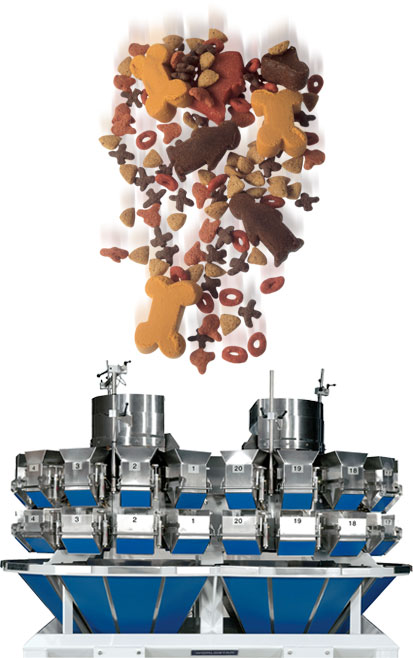

20-Head Combination Scale

The Parsons-Eagle 20-head scale is a dual discharge multi-head combination net weigher ideal for weighing or counting a wide range of products including confectionary, bakery, pet food or treats, pasta, cereal, fresh produce and salty snacks up to 100 discharges per minute.

20-Head Combination Scale Features:

  • PC based control system with user friendly touchscreen
  • Stainless steel construction for IQF and other wash-down environments
  • Can be supplied with stepper or pneumatic bucket actuation, net weighing or piece count capabilities
  • Hot swappable weigh heads require no pre-programming when moved from one weigh
    head location to another
  • Triple-beam strain gauge load cells in the weigh heads combined with a highly refined vibration filter system (DSP) provide precise weighments in weigh buckets
  • Automatic tare ensures accuracy with sticky and dusty products
  • Storage for over 100 setups in memory
  • USDA and IQF wash-down designs are available
  • Engineered and manufactured in the U.S.A.

Machine Speed:

  • Up to 100 weighments per minute

Accuracy:

  • <1.0 g average giveaway per 500 g weighment

Weigh Bucket Specifications:

  • Bucket configurations:
       - 75 cubic inch (1.22 l) weigh bucket working volume
       - 115 cubic inch (1.88 l) weigh bucket working volume
       - 175 cubic inch (2.87 l) weigh bucket working volume
  • Heavy gauge stainless steel with smooth welded seams
  • Pneumatic or stepper motor actuation

Maximum Throughput:

  • Up to 800 lbs (360 kg) per minute on a 26 lbs/cu. ft. free flow product density

Machine Options:

  • NEMA 4X Enclosure
  • Distribution cone motion options
  • Customized parts and finishes for unique product handling
  • High capacity flood feed infeed module
  • Integrated product diverters
  • Gentle product handling features

Common Applications:
